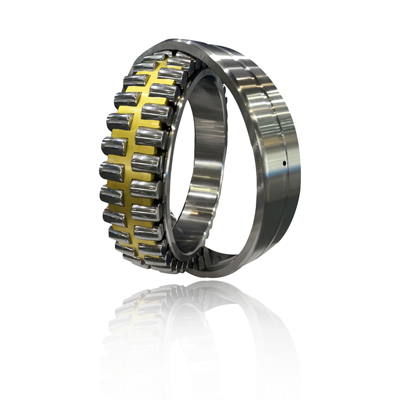

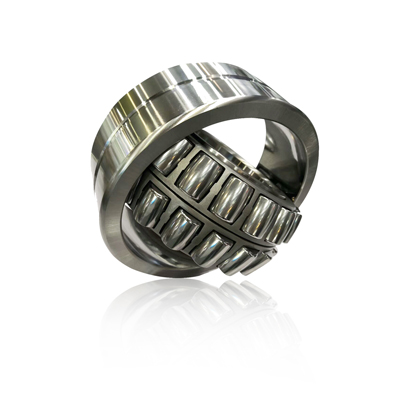

Self-aligning roller bearing

Product ID： 9525
size： 90
Material Science： cotton
INQUIRY

Product Introduction

The outer raceway of a self-aligning roller bearing is a spherical surface with the center point of the bearing as the center of the ball. The inner raceway has two inclined raceways with respect to the bearing line, providing excellent automatic self-aligning performance. Mainly used to withstand radial loads, it can also withstand axial loads in any direction. Suitable for large mechanical equipment such as mining, metallurgy, papermaking, and construction.

CA CC MA MB E1 E series

轴承型号	基本尺寸	基本额定载荷(kN)		极限转速(rpm)		重量(kg)
轴承型号	dxDxB	动(Cr)	静(Cor)	脂润滑	油润滑	重量(kg)
23020CA/W33	100x150x37	215	400	2400	3200	2.51
23120CA/W33	100x165x52	287	510	2000	2800	4.42
23120MB/W33	100x165x52	287	510	2000	2800	4.42
23120CC/W33	100x165x52	287	510	2000	2800	4.32
23120CC/W33/X2	100x165x52x65	287	510	2000	2800	5.02
23220CA/W33	100x180x60.3	400	570	1700	2200	6.58
23220MB/W33	100x180x60.3	400	570	1700	2200	6.58
24120CA/W33	100x165x65	414	582	1800	2600	5.55
24120CC/W33	100x165x65	414	582	1800	2600	5.45
24020CA/W33	100x150x50	260	377	2200	3000	3.45
24020CC/W33	100x150x50	260	377	2200	3000	3.15
22220CA/W33	100x180x46	277	425	2200	3000	5.18
22220MB/W33	100x180x46	277	425	2200	3000	5.18
22220CC/W33	100x180x46	277	425	2200	3000	5.02
22320CA/W33	100x215x73	540	815	1700	2200	14.0
22320MB/W33	100x215x73	540	815	1700	2200	15.0
22320CC/W33	100x215x73	540	815	1700	2200	13.8
23121CA/W33	105x175x56	365	550	1900	2700	5.48
23022CA/W33	110x170x45	253	460	2200	3000	3.54
23022MB/W33	110x170x45	253	460	2200	3000	3.54
23022CC/W33	110x170x45	253	460	2200	3000	3.24
21322CA/W33	110x240x50	450	580	1700	2400	11.5
23122CA/W33	110x180x56	325	580	1900	2600	5.73
23122MB/W33	110x180x56	325	580	1900	2600	5.73
23122CC/W33	110x180x56	325	580	1900	2600	5.50
23222CA/W33	110x200x69.8	490	720	1600	2000	10.1
23222MB/W33	110x200x69.8	490	720	1600	2000	10.1
23222CC/W33	110x200x69.8	490	720	1600	2000	9.95
24122CA/W33	110x180x69	425	750	1600	2000	6.92
24122MB/W33	110x180x69	425	750	1600	2000	6.92
24122CC/W33	110x180x69	425	750	1600	2000	6.72
24022CA/W33	110x170x60	378	565	1800	2500	5.00
24022MB/W33	110x170x60	378	565	1800	2500	5.00
24022CC/W33	110x170x60	378	565	1800	2500	4.71
22222CA/W33	110x200x53	345	545	2000	2800	7.43
22222MB/W33	110x200x53	345	545	2000	2800	7.43
22222CC/W33	110x200x53	345	545	2000	2800	7.15
22322CA/W33	110x240x80	630	955	1400	1800	18.9
22322MB/W33	110x240x80	630	955	1400	1800	18.9
22322CC/W33	110x240x80	630	955	1400	1800	18.6
23024CA/W33	120x180x46	263	495	2000	2800	4.19
23024MB/W33	120x180x46	263	495	2000	2800	4.19
23024CC/W33	120x180x46	263	495	2000	2800	4.01
23124CA/W33	120x200x62	405	715	1800	2400	13.4
23124MB/W33	120x200x62	405	715	1800	2400	13.4
23124CC/W33	120x200x62	405	715	1800	2400	13.1
23224CA/W33	120x215x76	535	940	1500	1900	12.1
23224MB/W33	120x215x76	535	940	1500	1900	12.1
23224CC/W33	120x215x76	535	940	1500	1900	11.8
24124CA/W33	120x200x80	495	925	900	1200	10.6
24124MB/W33	120x200x80	495	925	900	1200	10.6
24124CC/W33	120x200x80	495	925	900	1200	10.2
24024CA/W33	120x180x60	325	660	1600	2000	5.83
24024MB/W33	120x180x60	325	660	1600	2000	5.83
24024CC/W33	120x180x60	325	660	1600	2000	5.52
22224CA/W33	120x215x58	445	735	1900	2600	10.3
22224MB/W33	120x215x58	445	735	1900	2600	10.3
22224CC/W33	120x215x58	445	735	1900	2600	10.1
22324CA/W33	120x260x86	780	1160	1400	1800	23.8
22324MB/W33	120x260x86	780	1160	1400	1800	23.8
22324CC/W33	120x260x86	780	1160	1400	1800	23.2
23026CA/W33	130x200x52	340	650	1900	2600	7.04
23026MB/W33	130x200x52	340	650	1900	2600	7.04
23026CC/W33	130x200x52	340	650	1900	2600	6.85
23126CA/W33	130x210x64	430	790	1700	2200	9.56
23126MB/W33	130x210x64	430	790	1700	2200	9.56
23126CC/W33	130x210x64	430	790	1700	2200	9.25
23226CA/W33	130x230x80	607	1020	1300	1700	15.9
23226MB/W33	130x230x80	607	1020	1300	1700	15.9
23226CC/W33	130x230x80	607	1020	1300	1700	15.6
24126CA/W33	130x210x80	598	910	1500	1900	11.0
24126MB/W33	130x210x80	598	910	1500	1900	11.0
24126CC/W33	130x210x80	598	910	1500	1900	10.8
24026CA/W33	130x200x69	491	740	1700	2500	8.05
24026MB/W33	130x200x70	491	740	1700	2500	8.05
24026CC/W33	130x200x71	491	740	1700	2500	7.85
22226CA/W33	130x230x64	490	805	1800	2400	12.4
22226MB/W33	130x230x64	490	805	1800	2400	12.4
22226CC/W33	130x230x64	490	805	1800	2400	12.1
22326CA/W33	130x280x93	840	1300	1300	1700	18.3
22326MB/W33	130x280x93	840	1300	1300	1700	18.3
22326CC/W33	130x280x93	840	1300	1300	1700	18.1
23028CA/W33	140x210x53	365	705	1800	2400	6.70
23028MB/W33	140x210x53	365	705	1800	2400	6.70
23028CC/W33	140x210x53	365	705	1800	2400	6.50
23128CA/W33	140x225x68	490	935	1600	2000	10.9
23128MB/W33	140x225x68	490	935	1600	2000	10.9
23128CC/W33	140x225x68	490	935	1600	2000	10.6
23228CA/W33	140x250x88	910	1365	1200	1600	19.7
23228MB/W33	140x250x88	910	1365	1200	1600	19.7
23228CC/W33	140x250x88	910	1365	1200	1600	19.4
23328CA/W33	140x300x118	1300	2050	1000	1400	42.2
23328MB/W33	140x300x118	1300	2050	1000	1400	42.2
23928CA/W33	140x190x37	298	680	2200	3000	3.1
24128CA/W33	140x225x85	580	1150	850	1100	13.5
24128MB/W33	140x225x85	580	1150	850	1100	13.5
24128CC/W33	140x225x85	580	1150	850	1100	13.1
24028CA/W33	140x210x69	518	818	1700	2200	8.55
24028MB/W33	140x210x69	518	818	1700	2200	8.55
24028CC/W33	140x210x69	518	818	1700	2200	8.14
22228CA/W33	140x250x68	560	930	1700	2200	16.2
22228MB/W33	140x250x68	560	930	1700	2200	16.2
22228CC/W33	140x250x68	560	930	1700	2200	15.7
22328CA/W33	140x300x102	1210	1950	1100	1500	35.5
22328MB/W33	140x300x102	1210	1950	1100	1500	35.5
22328CC/W33	140x300x102	1210	1950	1100	1500	35.1
23030CA/W33	150x225x56	400	795	1700	2200	7.44
23030MB/W33	150x225x56	400	795	1700	2200	7.44
23030CC/W33	150x225x56	400	795	1700	2200	7.24
23130CA/W33	150x250x80	745	885	1400	1800	16.9
23130MB/W33	150x250x80	745	885	1400	1800	16.9
23130CC/W33	150x250x80	745	885	1400	1800	16.4
23230CA/W33	150x270x96	950	1550	1100	1500	26.6
23230MB/W33	150x270x96	950	1550	1100	1500	26.6
23230CC/W33	150x270x96	950	1550	1100	1500	26.2
24130CA/W33	150x250x100	928	1390	1400	1800	20.2
24130MB/W33	150x250x100	928	1390	1400	1800	20.2
24130CC/W33	150x250x100	928	1390	1400	1800	20.0
24030CA/W33	150x225x75	500	1050	1300	1700	9.39
24030MB/W33	150x225x75	500	1050	1300	1700	9.39
24030CC/W33	150x225x75	500	1050	1300	1700	9.11
22230CA/W33	150x270x73	630	1050	1600	2000	18.7
22230MB/W33	150x270x73	630	1050	1600	2000	18.7
22230CC/W33	150x270x73	630	1050	1600	2000	18.2
22330CA/W33	150x320x108	1120	1810	1000	1400	14.5
22330MB/W33	150x320x108	1120	1810	1000	1400	14.5
22330CC/W33	150x320x108	1120	1810	1000	1400	14.1
23032CA/W33	160x240x60	445	875	1700	2200	8.86
23032MB/W33	160x240x60	445	875	1700	2200	8.86
23032CC/W33	160x240x60	445	875	1700	2200	8.42
23132CA/W33	160x270x86	765	1430	1300	1700	21.9
23132MB/W33	160x270x86	765	1430	1300	1700	21.9
23132CC/W33	160x270x86	765	1430	1300	1700	21.4
23232CA/W33	160x290x104	955	1770	1000	1400	30.2
23232MB/W33	160x290x104	955	1770	1000	1400	30.2
23232CC/W33	160x290x104	955	1770	1000	1400	30.0
23932CA/W33	160x220x45	350	720	2000	2600	5.12
24132CA/W33	160x270x109	865	1690	1000	1400	24.6
24132MB/W33	160x270x109	865	1690	1000	1400	24.6
24132CC/W33	160x270x109	865	1690	1000	1400	24.2
24032CA/W33	160x240x80	570	1210	1100	1500	13.2
24032MB/W33	160x240x80	570	1210	1100	1500	13.2
24032CC/W33	160x240x80	570	1210	1100	1500	13.0
22232CA/W33	160x290x80	750	1300	1500	1900	24.6
22232MB/W33	160x290x80	750	1300	1500	1900	24.6
22232CC/W33	160x290x80	750	1300	1500	1900	24.3
22332CA/W33	160x340x114	1270	2050	950	1300	52.8
22332MB/W33	160x340x114	1270	2050	950	1300	52.8
22332CC/W33	160x340x114	1270	2050	950	1300	52.5
