Industrial bearings

Tapered roller bearing

Product ID： 9526
size： 80
Material Science： cotton
INQUIRY

Product Introduction

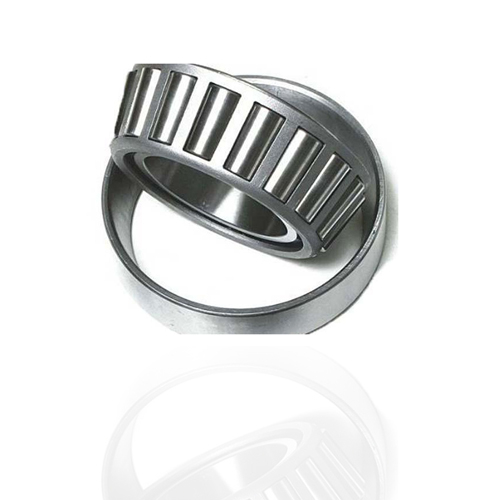

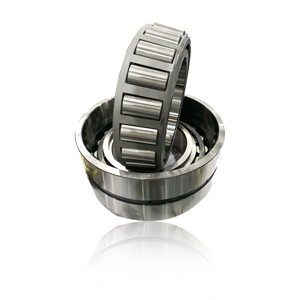

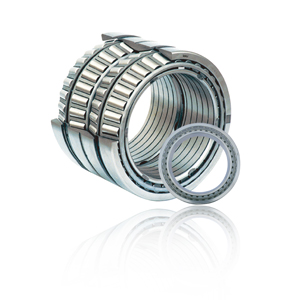

Conical roller bearings mainly bear combined radial and axial loads, and the axial bearing capacity depends on the angle of the outer race raceway. The larger the angle, the greater the bearing capacity. Double row and four row tapered roller bearings can withstand radial and axial combined loads mainly in the radial direction, and can withstand axial loads in both directions. They are generally suitable for medium and low-speed applications.

轴承型号	基本尺寸	基本额定载荷(kN)		极限转速(rpm)		重量(kg)
轴承型号	dxDxT	动(Cr)	静(Cor)	脂润滑	油润滑	重量(kg)
33220	100x180x63	390	655	1800	2300	6.58
30321	105x225x53.5	394	530	1600	2200	9.38
30222	110x200x41	292	430	1700	2400	5.27
30322	110x240x54.5	430	579	1600	2200	11.1
32224	120x215x61.5	420	610	1600	2200	9.60
31324	120x260x68	491	689	1500	2000	15.6
32024	120x180x38	215	320	1700	2400	3.31
30324	120x260x59.5	515	630	1500	2000	14.2
32324	120x260x90.5	730	980	1300	1800	22.4
32226	130x230x67.75	506	847	1500	2000	11.8
32926	130x180x32.5	136	249	1700	2400	2.31
32026	130x200x45	246	420	1500	2400	4.66
30228	140x250x45.75	366	540	1400	1900	8.80
32228	140x250x71.75	561	830	1400	1900	14.7
30328	140x300x67.75	670	944	1200	1700	21.2
32328	140x300x107.75	900	1380	1200	1700	34.7
31328	140x300x77	630	899	1200	1700	23.4
32928	140x190x32.5	140	257	1600	2200	2.43
32028	140x210x45	300	560	1600	2200	5.84
33030	150x225x59	403	700	1500	2000	16.4
32230	150x270x77	669	1142	1200	1700	18.4
30330	150x320x72	744	1100	1100	1600	25.5
32330	150x320x114	1150	1876	950	1400	42.2
32930	150x210x38.5	199	384	1500	2000	4.56
32030	150x225x48	254	454	950	1400	6.84
30232	160x290x52	466	696	1100	1600	13.4
32232	160x290x84	797	1392	1100	1600	23.3
30332	160x340x75	825	1050	1000	1450	28.4
31332	160x340x88	750	1050	1000	1500	29.8
32332	160x340x121	1250	1770	1000	1500	51.7
32932X	160x220x38	211	400	1500	2000	3.79
32032	160x240x51	343	629	1100	1600	7.67
32234	170x310x91	1296	2116	950	1400	63.5
32034	170x260x57	391	752	1400	1900	10.1
30334	170x360x80	920	1190	950	1300	35.2
30336	180x380x83	950	1300	900	1200	29.4
32936	180x250x45	330	609	1350	1700	5.79
30236	180x320x57	537	823	1000	1500	17.8
32236	180x320x91	931	1675	950	1400	63.5
32036	180x280x64	473	860	1400	1900	3.86
31038	190x290x51	349	610	950	1400	10.5
30238	190x340x60	675	1040	950	1400	20.6
32238	190x340x97	1000	1550	950	1300	36.1
32938	190x260x45.5	675	1040	1100	1600	6.52
32038	190x290x64	550	950	1200	1500	15.8
32240	200x360x104	1235	2144	900	1300	42.6
32940	200x280x51	, 348	742	1000	1500	8.70
32040	200x310x70	685	1300	950	1500	19.5
32244	220x400x114	1445	2641	900	1300	62.7
32944	220x300x51.5	354	835	900	1400	10.1
32044	220x340x76	709	1336	950	1400	23.3
30344	220x460x97	1420	1880	650	900	72.4
32248	240x440x127	1250	2050	700	1000	76.6
32948	240x320x51	354	767	900	1300	10.8
32048	240x360x76	768	1414	850	1200	14.9
32048X2	240x360x76.5	698	1414	850	1200	23.8
30348	240x500x105	1650	2220	670	950	92.6
30252	260x480x89	1321	2150	670	900	64.0
32252	260x480x137	1960	3650	670	900	105
30352	260x540x113	1830	2880	630	850	114
32952	260x360x63.5	620	1330	850	1100	18.6
32952X2	260x360x64.5	528	1257	800	1100	19.2
32052X2	260x400x87.7	912	1835	800	1100	37.8
32956	280x380x63.5	543	1257	800	1100	21.3
32056X2	280x420x87.7	987	1975	750	1000	39.6
30260	300x540x96	1500	2510	600	800	85.7
32960	300x420x76	980	2050	710	950	31.2
32960X2A	300x420x76.5	646	1807	710	950	30.2
32060	300x460x100	3850	10200	700	950	57.0
32064	320x480x100	1400	2940	630	850	62.7
32968	340x460x76	1050	2377	630	850	34.8
31068	340x520x86	1100	2040	550	750	58.5
31072	360x540x86	1300	2600	500	700	63.1
31976X2	380x520x69	529	1138	550	700	37.6
31080	400x600x95	1500	3100	400	550	80.2
32980	400x540x87	1650	3800	530	710	52.9
31084	420x620x95	1440	3050	350	500	88.3
319/710	710x950x114	2800	6800	190	250	211
306/760	760x890x78	1240	3520	190	250	78.3
70678/800	800x990x57	1145	3500	150	200	90.1
